  Glass Passivated Rectifier Chip  ( GPRC  )

Glass Passivated Rectifier Chip ( GPRC ) ‧ Fully glass passivated rectifier chip implemented by Zowie
proprietary technology.
‧ Chip types ranging from general rectifiers,fast recovery
rectifiers to ultrafast recovery rectifiers.


  Rectifier Diode with GPRCInside ( SUPEREX II)

‧ Packaged diode products with GPRCchip inside.
‧ Package types including SMD, axial lead, bridge, andpower packages.
‧

Diode Structure (1)
Diode Structure
‧ Diode Structure (2)


Zowie GPRC (P-N junction fully glass passivated) ‧Zowie GPRC(P-N junction fully glass passivated)

Traditional GPP (P-N junction not fully passivated)
 ‧Traditional GPP(P-N junction not fully passivated)
‧ SRII( Rectifier Diode with GPRC Inside)
  SRII ( Rectifier Diode with GPRC Inside) /SMD,Axial Lead,Bridge,TO-220,ITO-220,AutoSRII ( Rectifier Diode with GPRC Inside)

  Chip Form Diode ( SuperChip  )

‧

Industry-first chip form diode realized by the most state-of-the-art packaging technology in the world.
‧ Product types including Schottky, GPRC rectifier, and TVS.
‧ Comparison of SMD Diode(1)

‧Traditional SOD-323 (by wire bonding)
Traditional SOD-323 (by wire bonding) Traditional SOD-323 (by wire bonding) Traditional SOD-323 (by wire bonding)
Traditional SOD-323 (by wire bonding) ‧To get more current density
‧To get better thermal dissipation
‧To get better surge capability
‧To be more robust
‧Zowie MSCD series ( 0805 size, footprint equivalent to traditional SOD-323)
Zowie MSCD series ( 0805 size, footprint equivalent to traditional SOD-323) Zowie MSCD series ( 0805 size, footprint equivalent to traditional SOD-323) Zowie MSCD series ( 0805 size, footprint equivalent to traditional SOD-323)
‧ Comparison of SMD Diode(2)-Halogen Free
  ‧Multilayer FR-5 substrate
‧Higher current density capability(same rating but smaller in size)
‧Leadless chip forming construction
‧No wire bonding
‧High thermal dissipation
  Current Diode Package Comparison

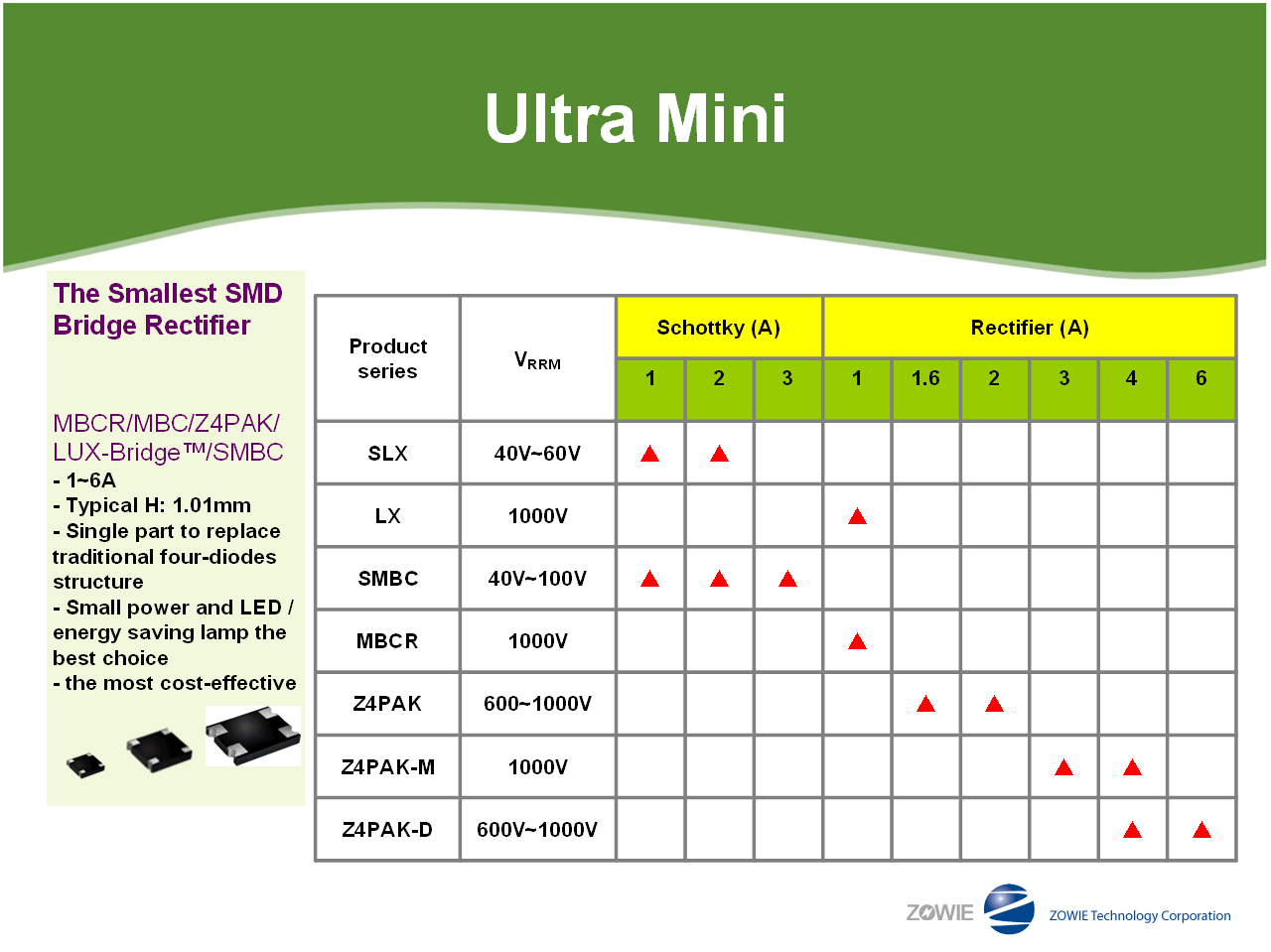

‧ Mini Bridge Rectifier
Mini Bridge Rectifier
‧ SuperChip ( Chip Form Diode)

SuperChip ( Chip Form Diode)
NO. Products
0402 0402 (Equivalent to SOD-723)
0603 0603 (Equivalent to SOD-523)
0805 0805 (Equivalent to SOD-323)
1206 1206 (Equivalent to SOD-123)
2010 2010 (Equivalent to DO-214AC / SMA)
2114 2114 (Equivalent to DO-214AA /SMB)
3220 3220 (Equivalent to DO-214AB /SMC)

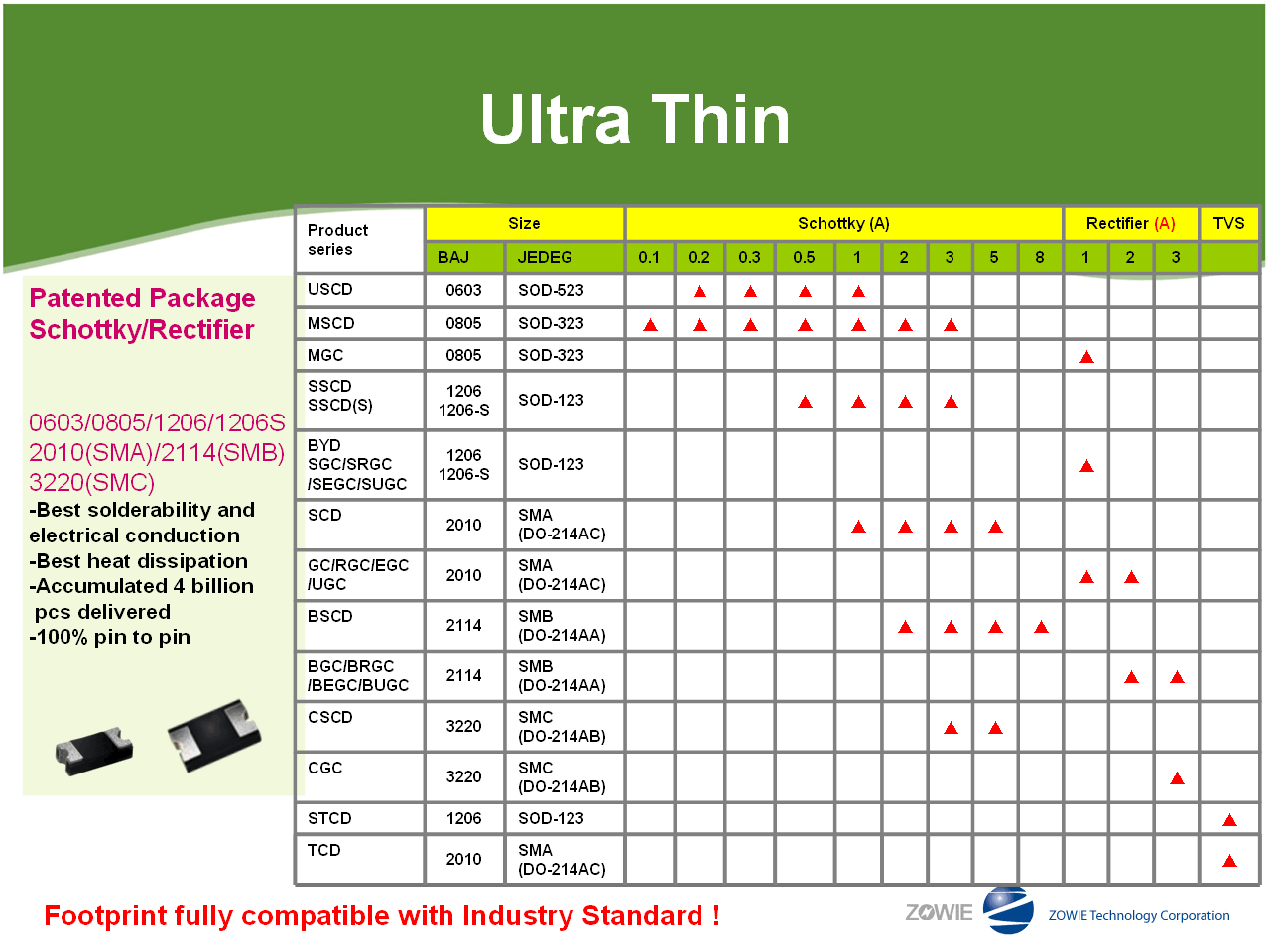

‧ SuperChip – Product Table

SuperChip – Product Table
Products
Series
 Size Schottky Rectifier(**) Tvc(***)
EIAJ JEDEC 0.1A 0.2A 0.3A 0.5A 1A 2A 3A 5A 1A
VSCD 0402 SOD-723
USCD 0603 SOD-523
MSCD 0805 SOD-323
SSCD 1206 SOD-123
BYD 1206 SOD-123
SCD 2010 SMA[DO-214AC]
BSCD 2114 SMB[DO-214AA]
CSCD 3220 SMC[DO-214AB]
BTCD 2114 SMB[DO-214AA]
CTCD 3220 SMC[DO-214AB]
