 MBCS Products
‧Application :
Electronic products, for example: battery charger、power supply 、 notebook and so on.
‧Advantage :
Use the SMD package，suitable for thin design tendency of all electronic products.
 |

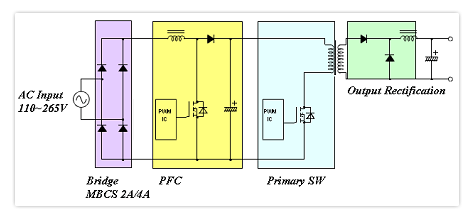

— Figure 1. AC to DC |
| |
Key Benefits
‧Greenest
component to save energy & dollars - Achieved with low forward voltage (Vf) and reverse current (IR). |
‧Lowest–profile
device to enable products smaller and potentially more portable
Achieved with thinnest device currently available. |
‧Best solution for cost/quality
Achieved with patented, cost-effective SCD process and GPRC silicon integrated inside. |
Electrical Characteristics
| Low VF Type Bridge Rectifier |
| Type |
Type MBCS20D~MBCS20M |
MBCS40D~MBCS40M |
| Dimen.(mm) |
10.5 × 8.1 × 1.15 |
| IAV |
2.0A |
4.0A |
| VRRM |
200 V ~ 1000 V |
200 V ~ 1000 V |
IR
Ta=25℃
Ta=125℃ |
5 uA
50uA |
5 uA
50uA |
| VF |
0.9 V Max。 ( @1.0A )
0.86 V Typ。 ( @1.0A ) |
0.9 V Max。 ( @2.0A )
0.86 V Typ。 ( @2.0A ) |
| IFSM |
60 A |
150 A |
| Bottom Side View |
 |
| Top Side View |
 |
Feature of 4A SMD Bridge
Simple Rectifier Circuit
| ‧AC 110V transform into DC voltage |
 |
| ‧Ideal Vo waveform |
 |
| ‧Figure 4. Actual Vo，IL waveform |
 |
‧MBCS 2A/4A depends on the above circuit diagram connection， the test condition
‧R1=100Ω 、C1=450uF Test result VO(Avg.)=155V IRL(Avg.)=1.5A
‧GBP206/GBL06 by the same condition test，may obtain the same waveform output.
‧Continues by this circuit testing to burn-in 24hrs, MBCS could be still working normal.
|
| |
|
