 Electrical Characteristics

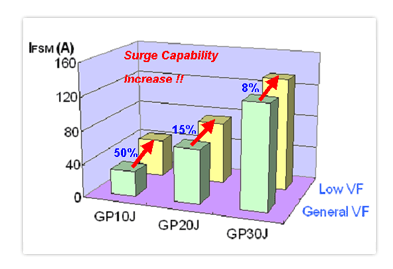

The feature of Low VF Sintered Glass Passivated Junction Rectifier is low power dissipation loss and can be accepted high forward surge. For example, the forward Surge of GP10JL will increase 50% more than tradition general purpose rectifier.
| TYPE |
P/N |
Description |
Package |
| Io |
VRRM |
VF (TYP.) |
VF (MAX.) |
IFSM |
| A |
V |
V |
V |
A |
G110DL~
G110JL |
G110DL |
1 |
200 |
0.87 |
0.90 |
30 |
R1 |
| G110GL |
1 |
400 |
0.87 |
0.90 |
30 |
| G110JL |
1 |
600 |
0.87 |
0.90 |
30 |
GP10DL~
GP10JL |
GP10DL |
1 |
200 |
0.87 |
0.90 |
45 |
DO-204AL
(DO-41) |
| GP10GL |
1 |
400 |
0.87 |
0.90 |
45 |
| GP10JL |
1 |
600 |
0.87 |
0.90 |
45 |
GP20DL~
GP20JL |
GP20DL |
2 |
200 |
0.87 |
0.90 |
75 |
DO-204AC
(DO-15) |
| GP20GL |
2 |
400 |
0.87 |
0.90 |
75 |
| GP20JL |
2 |
600 |
0.87 |
0.90 |
75 |
GP30DL~
GP30JL |
GP30DL |
3 |
200 |
0.87 |
0.90 |
135 |
DO-201AD
(DO-27) |
| GP30GL |
3 |
400 |
0.87 |
0.90 |
135 |
| GP30JL |
3 |
600 |
0.87 |
0.90 |
135 |
Features

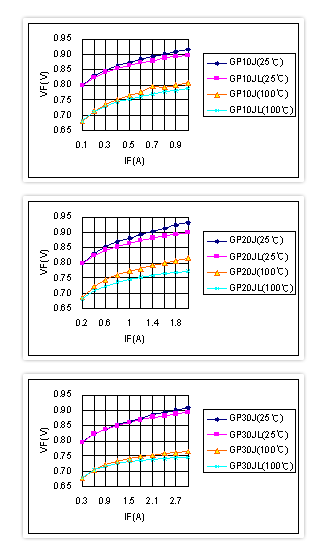

1. Forward Voltage Drop
2. Forward Surge

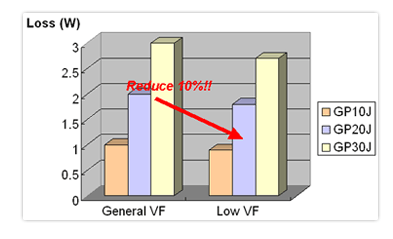

3. Power Loss
|
